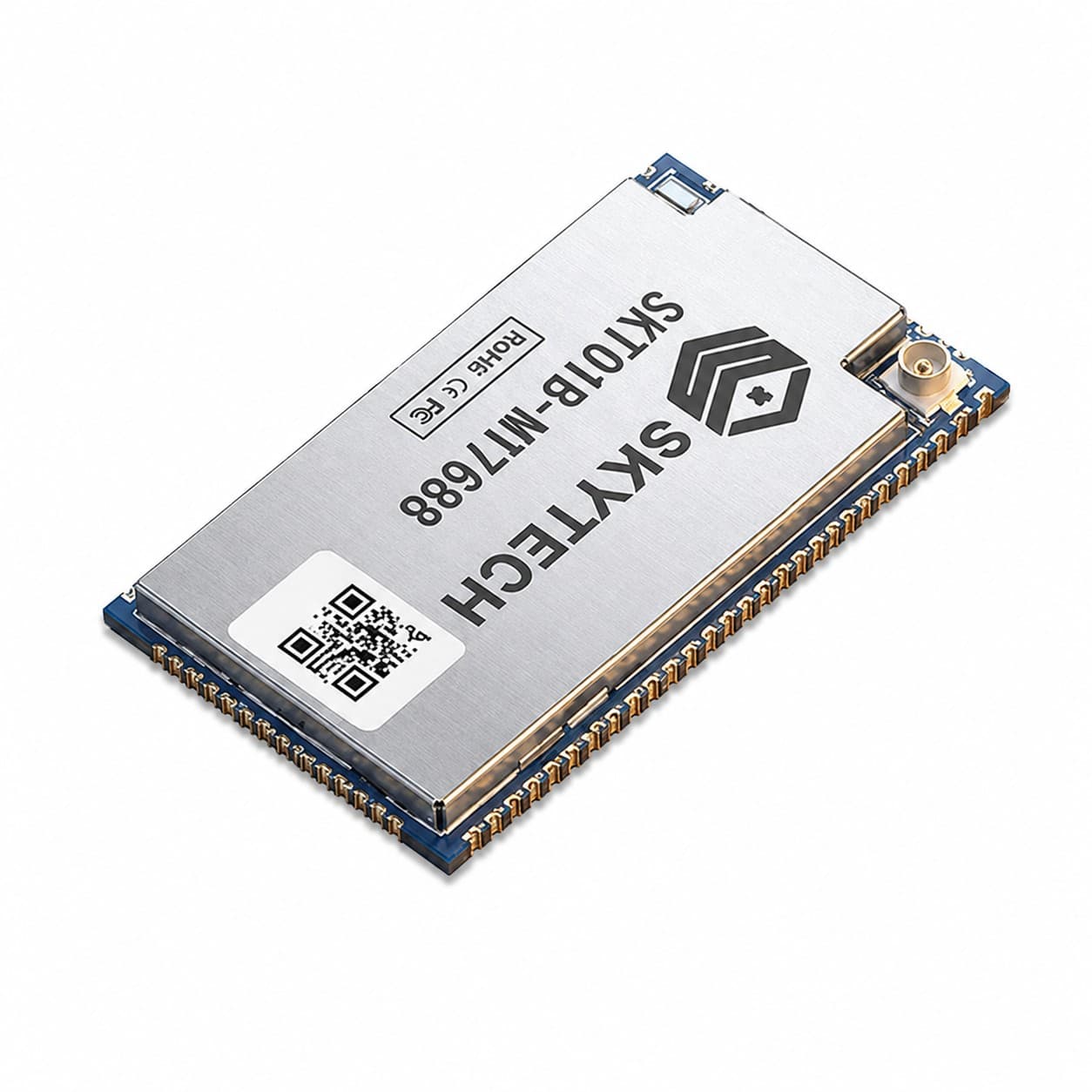

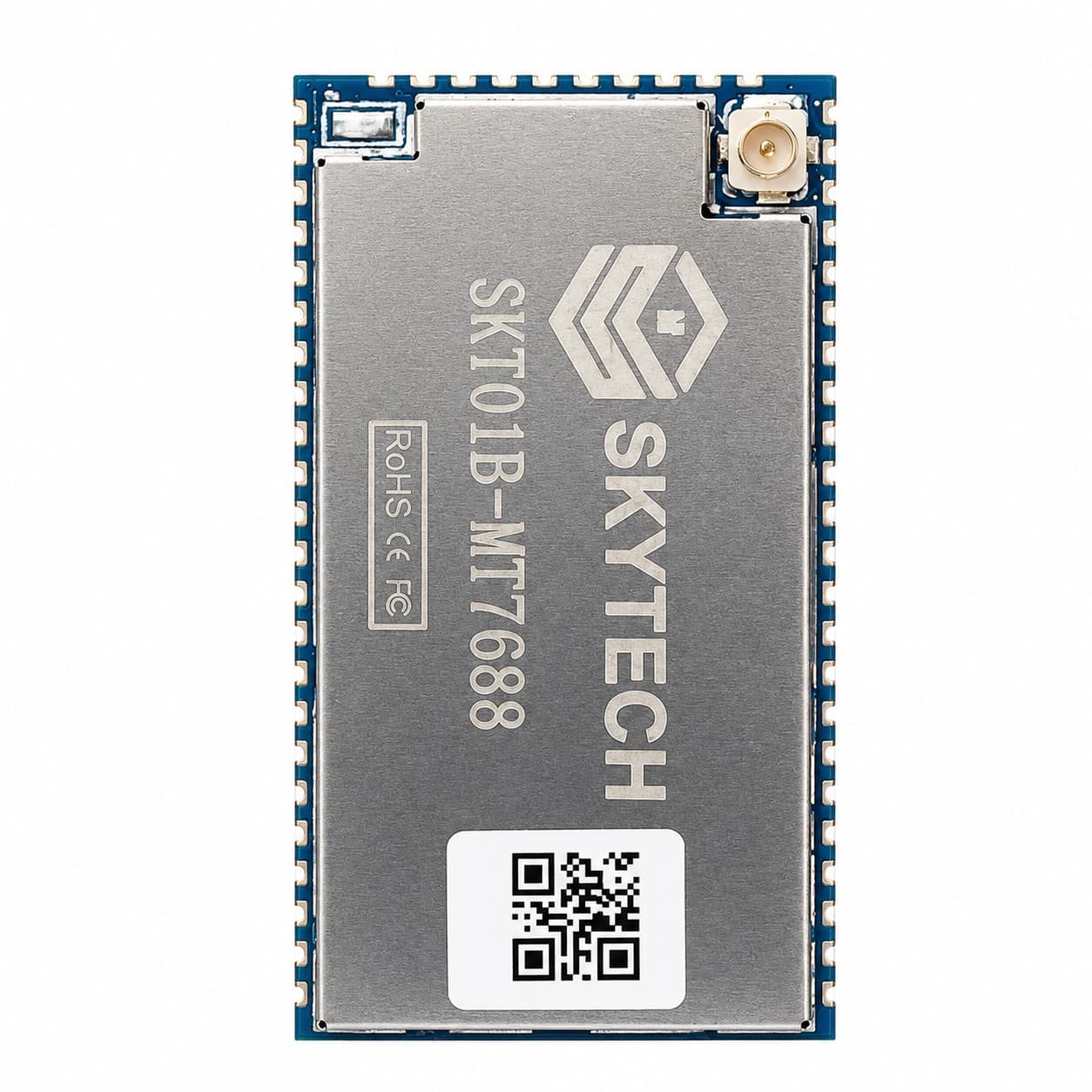

SKT01B-MT7688 OpenWRT SOM

The SKT01B-MT7688 is a high-performance Linux-based System-on-Module (SOM) designed for Industrial IoT, Smart Home, Edge Computing, and intelligent networking applications.

Built around the powerful MediaTek MT7688 processor, the module runs OpenWRT Linux and provides a stable, flexible, and highly customizable platform for developing connected devices. With integrated 2.4GHz Wi-Fi, advanced networking capabilities, and extensive peripheral support, developers can rapidly build reliable products while reducing development costs and time-to-market.

The SKT01B supports a comprehensive range of communication protocols and services, including TCP/IP, MQTT, HTTP/HTTPS, VPN, SSH, and Web Server applications. Multiple hardware interfaces such as UART, SPI, I2C, PWM, USB Host, and GPIO enable seamless integration with sensors, industrial controllers, and external peripherals.

Featuring a 580MHz MIPS 24KEc CPU, low power consumption, and dependable 24/7 operation, the SKT01B-MT7688 is an ideal solution for IoT gateways, industrial automation systems, smart monitoring devices, remote management platforms, and edge intelligence applications.

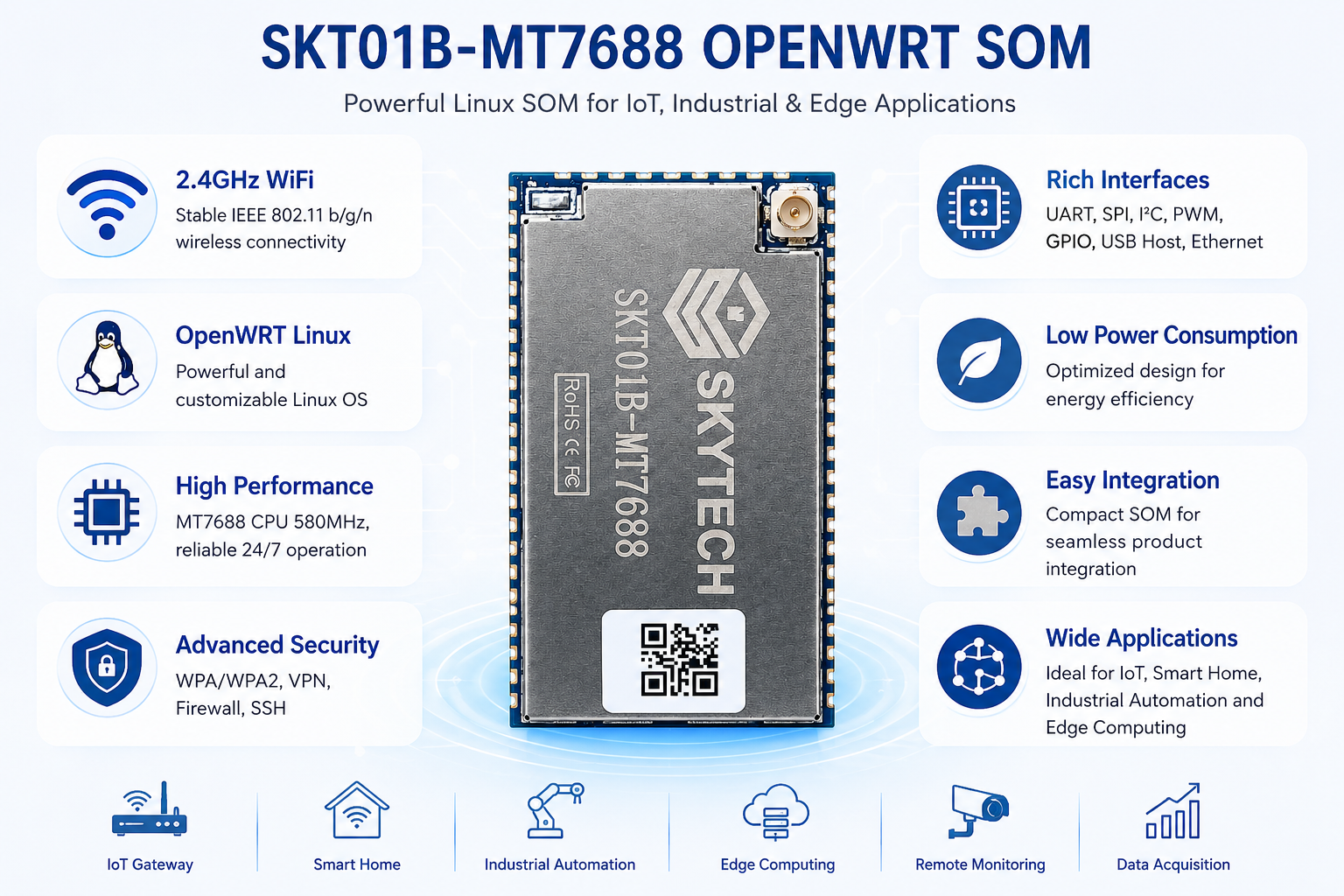

SKT01B-MT7688 OpenWRT Linux System on Module

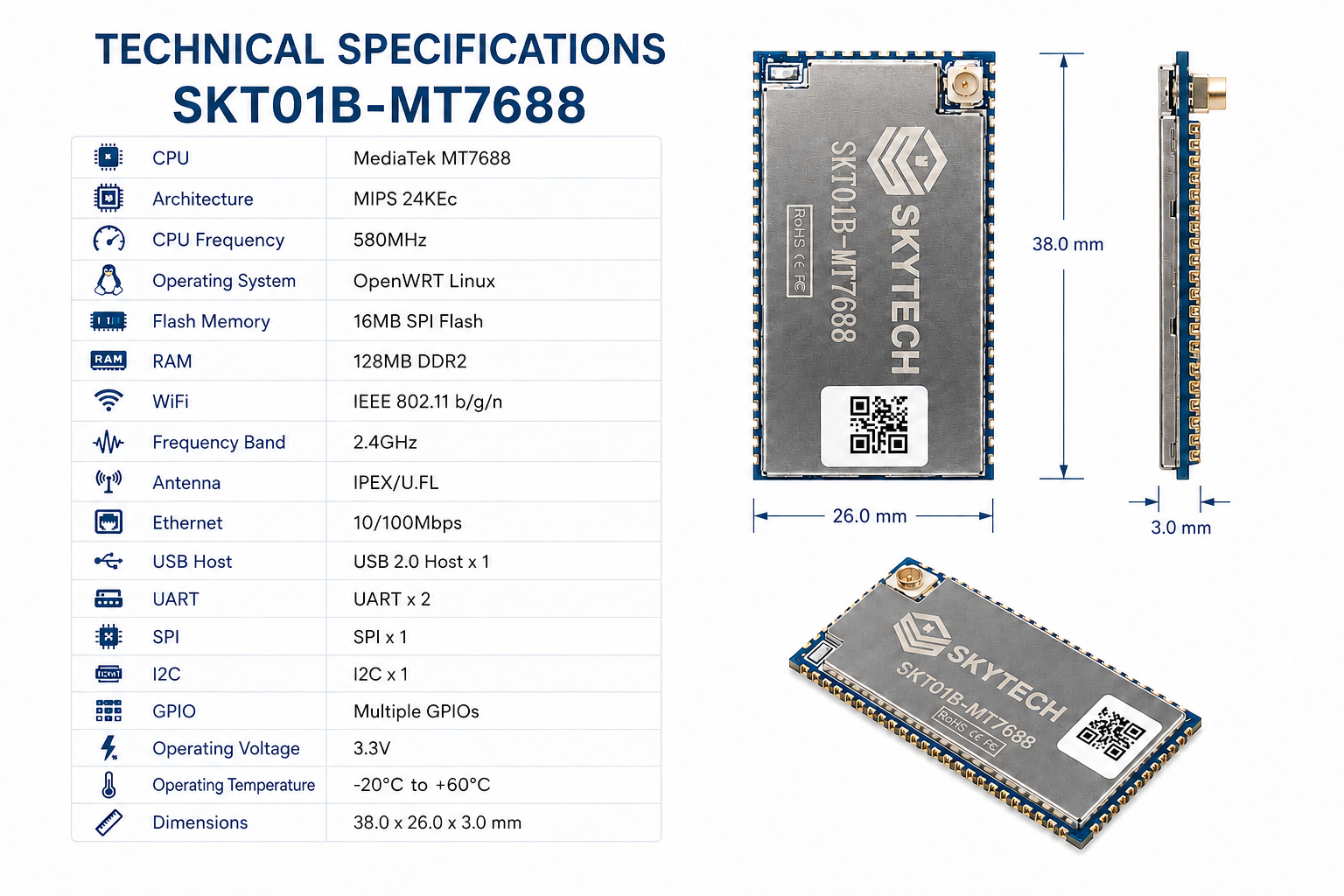

Feature Details

OPENWRT LINUX OPERATING SYSTEM	POWERFUL NETWORK CONNECTIVITY	HIGH PERFORMANCE	EASY INTEGRATION
Stable Embedded Linux	Wi-Fi 2.4GHz IEEE 802.11 b/g/n	MediaTek MT7688 CPU 580MHz	UART
SSH and Telnet Support	AP Mode Support	Linux Multitasking Capability	SPI
MQTT Broker/Client Support	Station Mode Support	Fast Network Protocol Processing	I²C
Web Server Support	Repeater Mode Support	Reliable 24/7 Operation	PWM
Lightweight Docker Support	Router Gateway Support		GPIO
OTA Update Support			USB Host
			Ethernet
