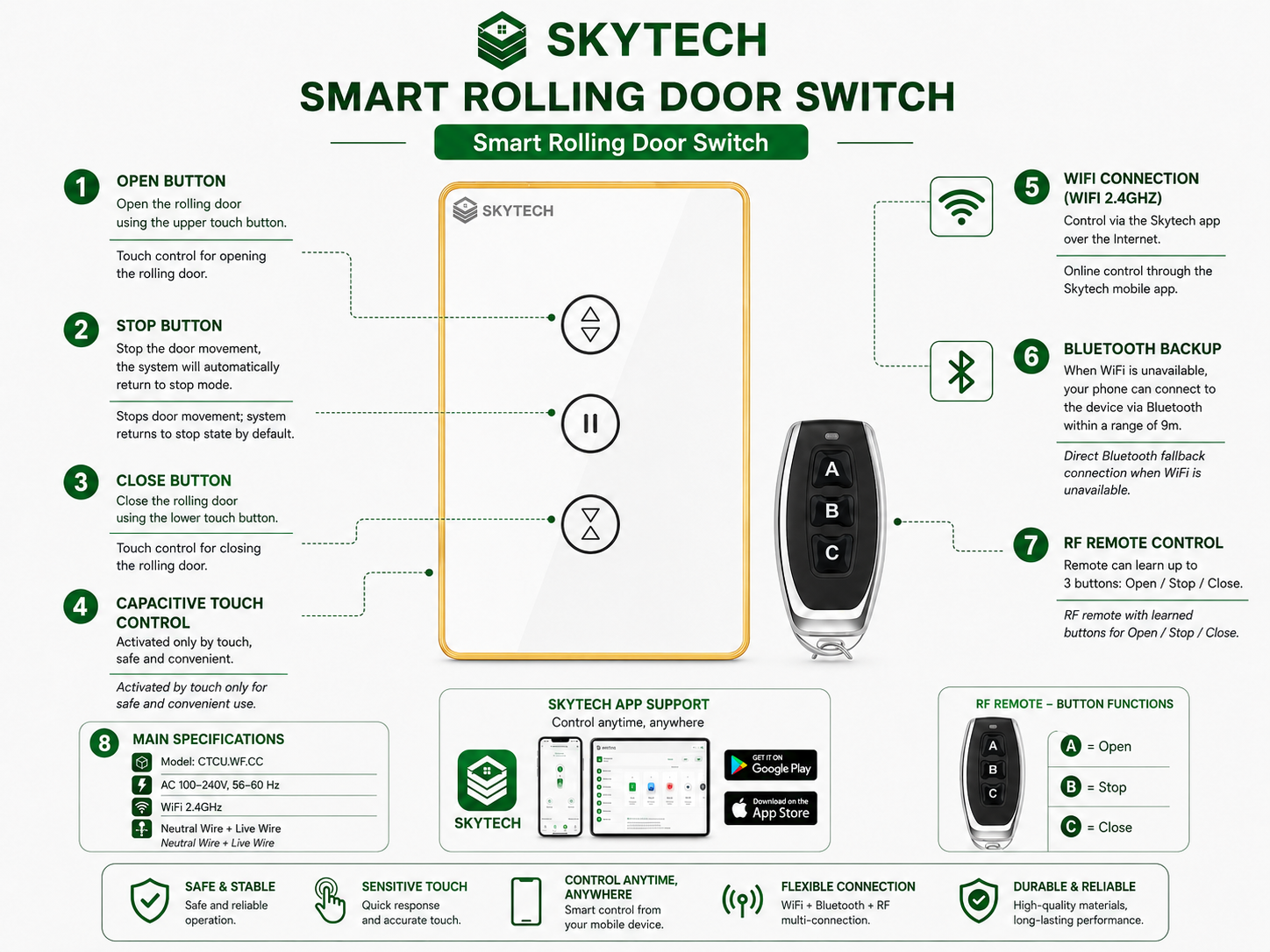

Open / Stop / Close Control

Controls the rolling door with three basic states: Open, Stop, and Close.

Capacitive Touch Control

Activated only by human touch, reducing unintended operation caused by reptiles or objects passing over the surface.

Mobile App Control

Remotely control the rolling door through the SKYTECH mobile application.

WiFi Connectivity

Supports 2.4GHz WiFi for remote control and device management via the Internet.

Bluetooth Backup

When WiFi is unavailable, direct Bluetooth connection can be used within close range.

RF Remote Control Support

Supports RF remote learning for rolling door operation via remote controllers.

Camera Integration

Can be integrated with cameras to monitor the actual door status during remote operation.

Open/Close Time Settings

Allows configuration of operating duration for door opening and closing.

Automatic Scheduling

Supports setting schedules for automatic door opening and closing.

Smart Scenarios

Can be integrated into smart home automation scenes.

Family Sharing

Allows device control permissions to be shared with multiple users.

Account Monitoring

Tracks user accounts and operation history for enhanced security.

Fire Alarm Integration

Can be integrated with fire alarm systems to automatically open the door during emergencies.

Android & iOS Support

Mobile application available for both Android and iOS devices.

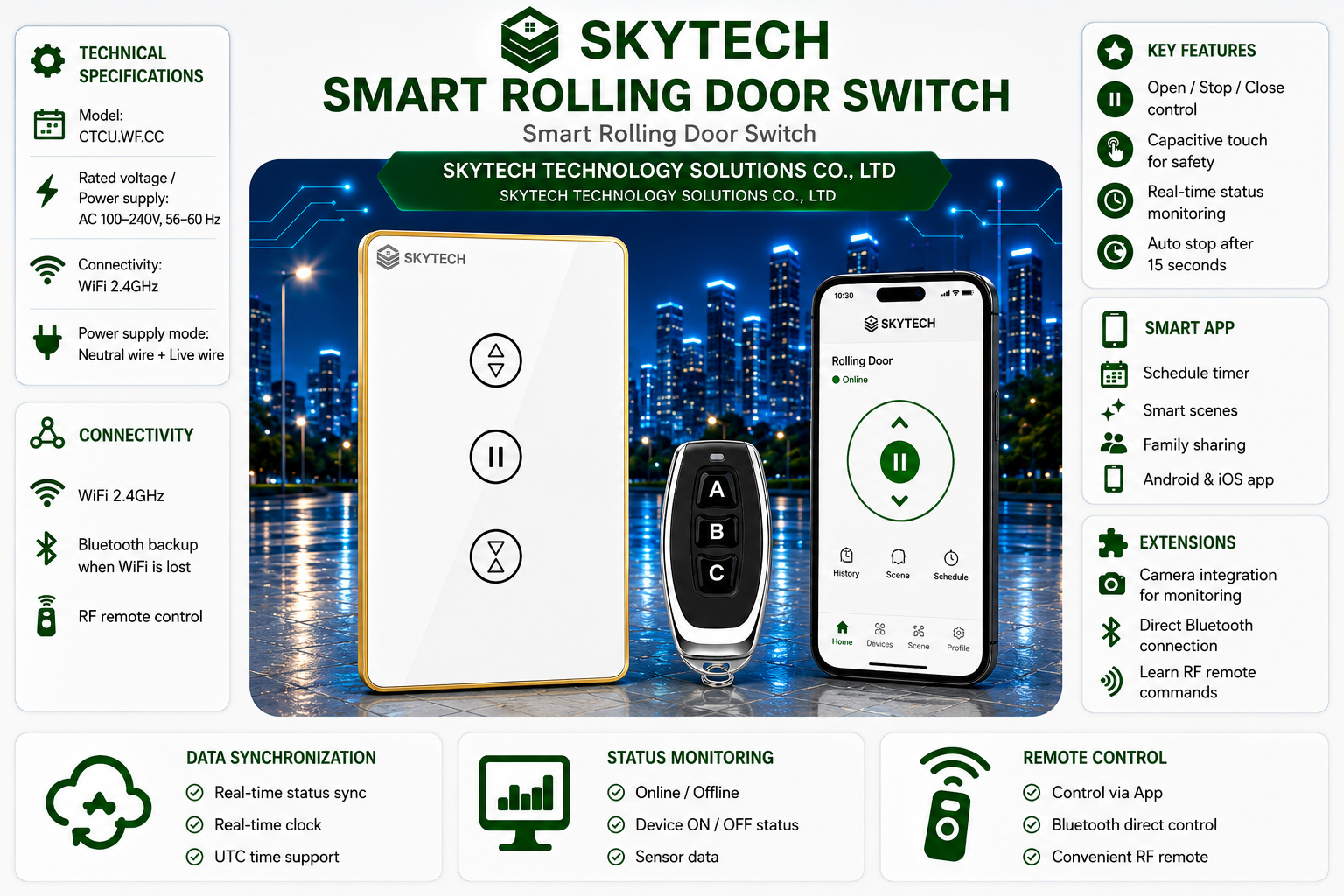

Product Name

Smart Rolling Door Switch

Vietnamese Name

Smart Rolling Door Switch

Model

CTCU.WF.CC

Rated Voltage

AC 100–240V, 56–60Hz

Primary Connectivity

WiFi 2.4GHz

Backup Connectivity

Bluetooth

Recommended Bluetooth Range

Approximately 9 meters

Power Supply Mode

Live Wire + Neutral Wire

Control Methods

Touch Panel / SKYTECH App / RF Remote

Control States

Open / Stop / Close

RF Remote Support

Yes

Camera Support

Yes

Scheduling Support

Yes

User Sharing Support

Yes

Supported Operating Systems

Android / iOS

Installation Type

Flush-Mounted Wall Installation
